| Circuit View | |
![]() |
|
| T |

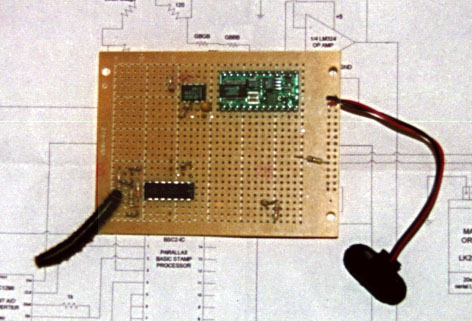

his is part of the circuitry. See Wacko, the caterpillar, inspect the Wheatstone Bridge circuit. He just couldn't resist. To the right of those resistors is the amplifier, above that is the AD, to the right of that is the BSC2. All the holes below the 9V connector are connected in the final project with LCD serial connections, speaker wires, input/output etc. |
